In stock: 19135 pcs
| Part Number |

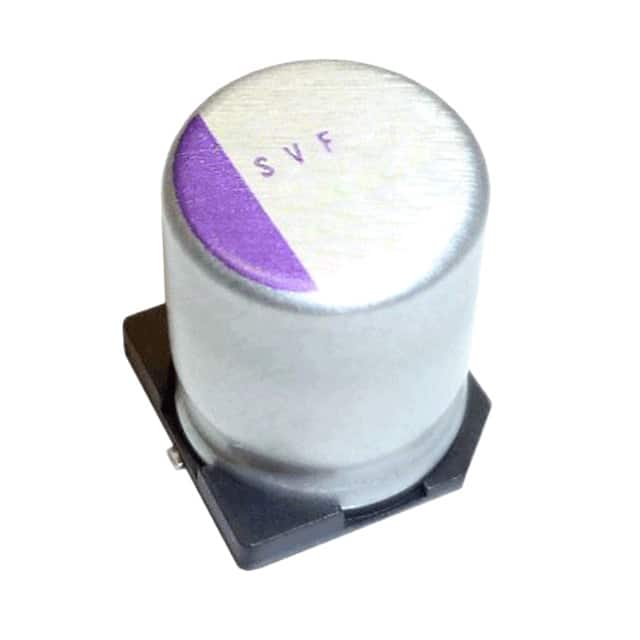

16SVF560M
|
16SVP330M
 |
16SVP22M
 |
16SVP15M
 |
|
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.500" (12.70mm) | 0.236" (6.00mm) | 0.236' (6.00mm) | |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | |
| Lead Spacing | - | - | - | - | |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.209' L x 0.209' W (5.30mm x 5.30mm) | |
| Lifetime @ Temp. | 1000 Hrs @ 125°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | |
| Tolerance | ±20% | ±20% | ±20% | ±20% | |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.197" Dia (5.00mm) | 0.197' Dia (5.00mm) | |
| Series | OS-CON™, SVF | OS-CON™, SVP | OS-CON™, SVP | OS-CON™, SVP | |
| ESR (Equivalent Series Resistance) | 14mOhm | 16mOhm | 90mOhm | 120mOhm | |
| Ripple Current @ Low Frequency | 78 mA @ 120 Hz | 236 mA @ 120 Hz | 53 mA @ 120 Hz | 51 mA @ 120 Hz | |
| Ratings | - | - | - | - | |
| Capacitance | 560 µF | 330 µF | 22 µF | 15 µF | |
| Ripple Current @ High Frequency | 1.56 A @ 100 kHz | 4.72 A @ 100 kHz | 1.06 A @ 100 kHz | 1.02 A @ 100 kHz | |
| Voltage - Rated | 16 V | 16 V | 16 V | 16 V | |
| Package | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | |
| Type | Polymer | Polymer | Polymer | Polymer | |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | |
| Base Product Number | 16SVF | 16SVP | 16SVP | 16SVP |
